This change map was produced on the basis of a classification method developed in the project incora (Inwertsetzung von Copernicus-Daten für die Raumbeobachtung, mFUND Förderkennzeichen: 19F2079C) in cooperation with ILS (Institut für Landes- und Stadtentwicklungsforschung gGmbH) and BBSR (Bundesinstitut für Bau-, Stadt- und Raumforschung) funded by BMVI (Federal Ministry of Transport and Digital Infrastructure). The goal of incora is an analysis of settlement and infrastructure dynamics in Germany based on Copernicus Sentinel data.

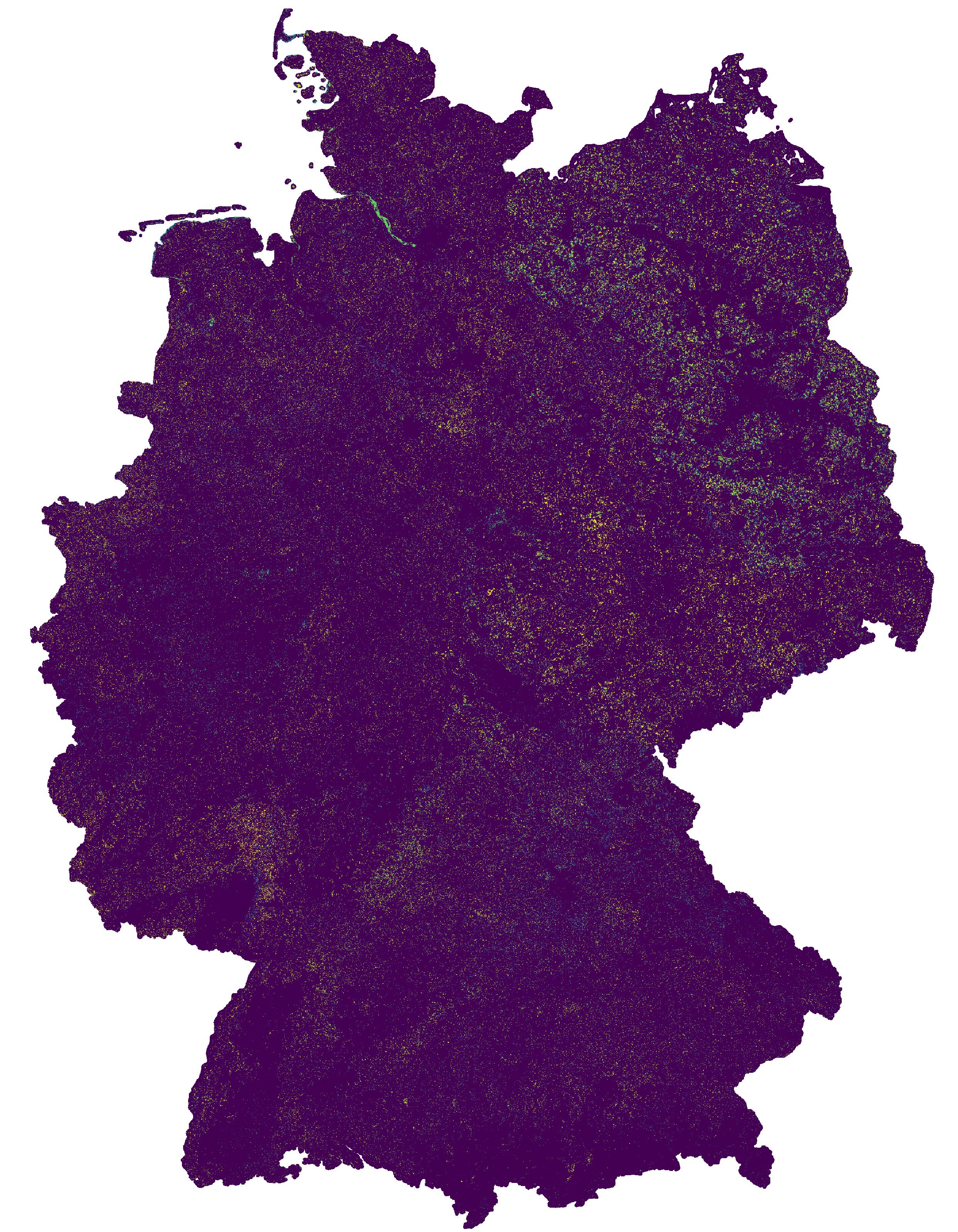

The map indicates land cover changes between the years 2019 and 2020. It is a difference map from two classifications based on Sentinel-2 MAJA data (MAJA L3A-WASP: https://geoservice.dlr.de/web/maps/sentinel2:l3a:wasp ; DLR (2019): Sentinel-2 MSI - Level 2A (MAJA-Tiles)- Germany). More information on the two basis classifications can be found here:

https://data.mundialis.de/geonetwork/srv/eng/catalog.search#/metadata/36512b46-f3aa-4aa4-8281-7584ec46c8 13

https://data.mundialis.de/geonetwork/srv/eng/catalog.search#/metadata/9246503f-6adf-460b-a31e-73a649182d07

To keep only significant changes in the change detection map, the following postprocessing steps are applied to the initial difference raster:

- Modefilter (3x3) to eliminate isolated pixels and edge effects

- Information gain in a 4x4 window compares class distribution within the window from the two timesteps. High values indicate that the class distribution in the window has changed, and thus a change is likely. Gain ranges from 0 to 1, all changes < 0.5 are omitted.

- Change areas < 1ha are removed

The resulting map has the following nomenclature:

0: No Change

1: Change from low vegetation to forest

2: Change from water to forest

3: Change from built-up to forest

4: Change from bare soil to forest

5: Change from agriculture to forest

6: Change from forest to low vegetation

7: Change from water to low vegetation

8: Change from built-up to low vegetation

9: Change from bare soil to low vegetation

10: Change from agriculture to low vegetation

11: Change from forest to water

12: Change from low vegetation to water

13: Change from built-up to water

14: Change from bare soil to water

15: Change from agriculture to water

16: Change from forest to built-up

17: Change from low vegetation to built-up

18: Change from water to built-up

19: Change from bare soil to built-up

20: Change from agriculture to built-up

21: Change from forest to bare soil

22: Change from low vegetation to bare soil

23: Change from water to bare soil

24: Change from built-up to bare soil

25: Change from agriculture to bare soil

26: Change from forest to agriculture

27: Change from low vegetation to agriculture

28: Change from water to agriculture

29: Change from built-up to agriculture

30: Change from bare soil to agriculture

- Contains modified Copernicus Sentinel data (2019/2020), processed by mundialis

Incora report with details on methods and results: pending
